Integrated Onsite Waste Treatment
Is the Mark VI-N Right for Your Facility?
The San-I-Pak Mark VI-N is designed for facilities seeking a modular, integrated solution for onsite sterilization and compaction of regulated medical waste.
Its three-position process—load, sterilize, and dump—supports a controlled workflow from waste collection through treatment and compaction. With a listed processing capacity of 200 pounds per hour, the Mark VI-N is suitable for facilities that need dependable onsite treatment within an integrated system footprint.
The unit can manage regulated medical waste and municipal solid waste within one footprint and may be paired with Self-Contained, L, or XL compactor configurations.

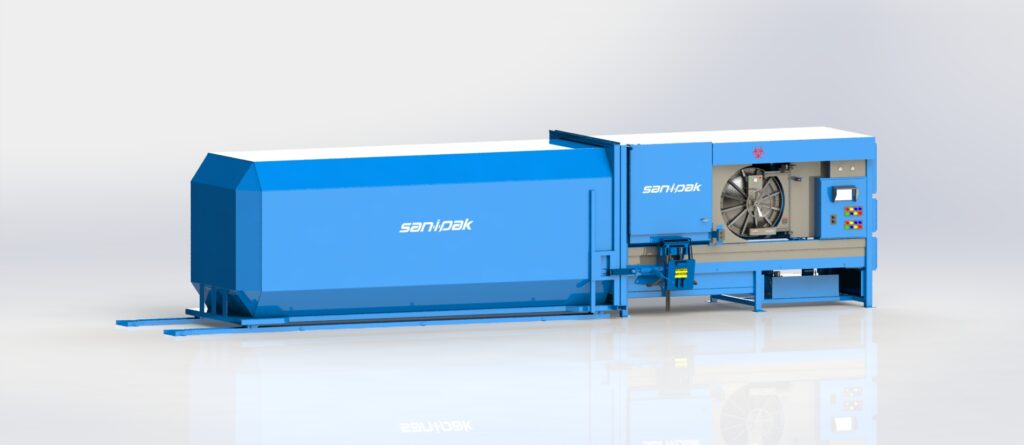

Modular Sterilizer and Compactor
The Mark VI-N is a modular, integrated sterilizer and compactor designed to reduce separate waste-handling stages.
Waste carts are loaded using the integrated cart dumper, processed through the programmed steam-sterilization cycle, and transferred into the high-density compactor. This coordinated process helps reduce direct handling while providing a more controlled approach to onsite waste treatment.
The unit is suitable for indoor or outdoor installation, allowing it to be positioned according to the facility’s available space, workflow, and utility access.
Sterilizer process
Three position: load, sterilize, dump
Chamber size
38″ inside diameter × 55″ long
Capacity
200 lbs. per hour
Load time
3–4 minutes per chamber
Cycle time
45 minutes
10-hour shift capacity
2,000 lbs.
16-hour shift capacity
3,200 lbs.
24-hour shift capacity
4,800 lbs.
Compaction ratio
6:1
Compatible carts
64- or 96-gallon trainable Toter carts
- Three-position sterilizer: load, sterilize, and dump
- Modular, integrated sterilizer and compactor
- Cart dumper for hands-off loading
- High-density compactor
- 6:1 compaction ratio
- Manages RMW and MSW within one footprint
- Compatible with 64- and 96-gallon trainable Toter carts
- San-I-Pak Net™ for downloading cycle records
- Remote troubleshooting
- Software updates and alarm messaging
- Sterilization cycle operating at 284°F for 35 minutes
- Self-Contained, L, and XL compactor options
- Indoor or outdoor installation
Electrical
- 480V / 40A / 3-phase, or
- 208V / 70A / 3-phase
- 120V / 40A / single-phase
Steam
- 65–90 PSI
- 125 lbs./hour per chamber
Water
- Accessible water supply
- 30–60 PSI
Drainage
- Sanitary drain
Its modular design and available compactor options allow the treatment system to be adapted to different operational layouts while keeping sterilization and compaction within one coordinated footprint.
Explore the Mark Series
Compare available Mark Series configurations to find the treatment capacity and equipment layout that best suit your facility’s waste volume and operational requirements.
